CX660 High End telematics system with 4G and Dual CAN


The CX660 has a multi -band LTE Cat. 4 modem via a modern and future-proof mobile connection, because LTE will be the nationwide backbone of mobile communication in the long term. Automatic fallback to EDGE / GPRS ensures optimal network availability. Voice with IVR (Interactive Voice Response) and DTMF as well as SMS complete the profile. Thanks to the support of a large number of frequency bands, the CX660 can be used worldwide.

Precise Positioning:

The CX660 features a highly sensitive GNSS receiver with support for GPS , GLONASS and GALILEO (99 acquisition channels / 33 tracking channels) with interference rejection and jamming protection. With the support of DGPS (WASS, EGNOS, MSAS, GAGAN), the positioning accuracy is increased again. Other sensors (3-axis acceleration sensor , 3-axis accelerometer and 3-axis compass ) complete the equipment.

Efficient Vehicle Integration:

Two independent complete CAN 2.0B   interfaces with hardware filtering and multi-speed support allow comprehensive data acquisition even in complex vehicle installations. Additional units without a CAN connection can be flexibly connected via the other interfaces of the CX660.

Sophisticated Energy Management:

A built -in UPS (integrated LiIon battery), low energy consumption and five execution speeds with wakeup events from various sources allow safe operation even on switched vehicle electrical systems.

Performance and Security for Edge computing:

The CX660 is based on a hardened Linux architecture with an IEC 61131-3 runtime environment . The Arm ® Cortex ® - A5 processor with floating point support, DSP functions and cryptographic acceleration offers more than enough power for your applications with edge computing. TLS/SSL support for all important TCP-based protocols (e.g. MQTT, SMTP, sockets) with full certificate management effectively protects your communication, e.g. with a cloud.

I/O Interfaces for ALL needs

The CX660 has 5 digital inputs , 4  digital solid state outputs (36V / 1.5A), 2 analog inputs and 4 flex inputs (analog/digital). The interface equipment is completely transparent for the user software via Modbus modules and can be expanded almost indefinitely.

Versatile Communication:

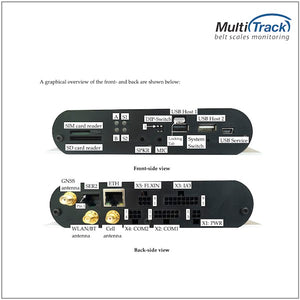

In addition to the mobile phone connection, the CX660 has a large number of interfaces: 100 Base-T Ethernet , dual CAN - 2.0 , RS-232, RS-485 , 1-Wire , WLAN , Bluetooth LE and USB . For easy use of the interfaces, the development environment provides support for a variety of protocols such as TCP/IP , UDP , SMTP , FTP , MQTT , 1-Wire, M-Bus , Modbus (master and slave).
