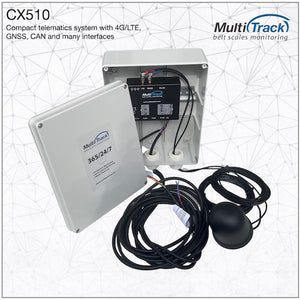

CX510 Telematics system with 4G/LTE, GNSS and CAN


The CX510 is a compact telematics system with 4G/LTE, GNSS, CAN and many interfaces.

Perfectly equipped for demanding mobile and stationary applications . Compact and with many interfaces, the CX510 is ideal for connecting devices and machines to the IoT.

Future-Proof Mobile Connection: The CX510 has a multi -band LTE Cat. 1 modem via a modern and future-proof mobile connection, because LTE will be the nationwide backbone of mobile communication in the long term. Automatic fallback to EDGE / GPRS ensures optimal network availability. Voice with IVR (Interactive Voice Response) and DTMF as well as SMS complete the profile.

Precise Positioning: The CX510 features a highly sensitive GNSS receiver with support for GPS , GLONASS, QZSS and GALILEO (99 acquisition channels / 33 tracking channels) with interference rejection and jamming protection. A 3-axis acceleration sensor completes the equipment.

Efficient Vehicle Integration: A complete CAN 2.0B   interface with hardware filtering and multi-speed support allows comprehensive data acquisition even in complex vehicle installations. Supported protocols include CANopen , FMS and J1939 . Additional units without a CAN connection can be flexibly connected via the other interfaces of the CX510.

Performance and Security for Edge Computing: The CX510 is based on a hardened Linux architecture with an IEC 61131-3 runtime environment . The 32-bit Arm ® processor with floating-point support, DSP functions and cryptographic acceleration offers enough power for demanding applications with edge computing. TLS/SSL support for all important TCP-based protocols (e.g. MQTT, SMTP, sockets) with full certificate management effectively protects your communication, e.g. with a cloud.

I/O Interfaces: The CX530 has 3 digital inputs , 2 digital solid state outputs (36V / 1 A) and 2 flex inputs (digital / analog) The interface equipment is completely transparent for the user software via Modbus modules and can be expanded almost indefinitely.

Versatile Communication: In addition to the mobile phone connection, the CX530 has a large number of interfaces: CAN-2.0 , RS-232, RS-485 , 1-Wire and an ISM tranciever. For easy use of the interfaces, the development environment provides support for a variety of protocols such as TCP/IP , UDP , SMTP , FTP , MQTT , 1-Wire, M-Bus , Modbus (master and slave).

Collections: Telematics Systems

Type: Telematics System
